Spectroscopy Lens (SpecLens)



spacer spacer spacer
SpecLens Features

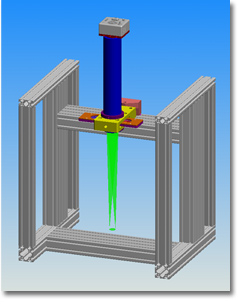

L-A-Omega has developed a spectroscopy lens for the detection of fluorophores.  Its patent pending design specifies an F4 image with nearly diffraction–limited performance.  Each pixel captures at least 24% of the point-spread within an 8 μm pixel.  The F8 object field captures 0.2% of a hemisphere while maintaining a ±0.4mm depth of focus at the object.  Filters may be swapped without affecting focus.  An extruded aluminum frame provides a stable platform for the addition of excitation optics.  Custom magnifications are available upon request.  The LAO SpecLens is highly adaptable to numerous configurations during product development.


Click Image to Enlarge

spectroscopy lens product view
pdf Download Spectroscopy Lens: Full Documentation (PDF)
